SprintIR®-W

High-Speed CO2 sensor - Up to 20 measurements per second! The SprintIR®-W is part of a range of CO2 sensors designed to deliver unprecedented high-speed measurement capability. The SprintIR®-W will take up to 20 readings per second, making it ideal for applications that require individual measurements at high repetition rates or where the CO2 concentration is changing rapidly.

zurück zur Übersicht

Angebot anfordern

The SprintIR®-W is fitted with a standard flow-through adaptor so the CO2 gas can be passed over... mehr

Zurück

Produktinformationen "SprintIR®-W"

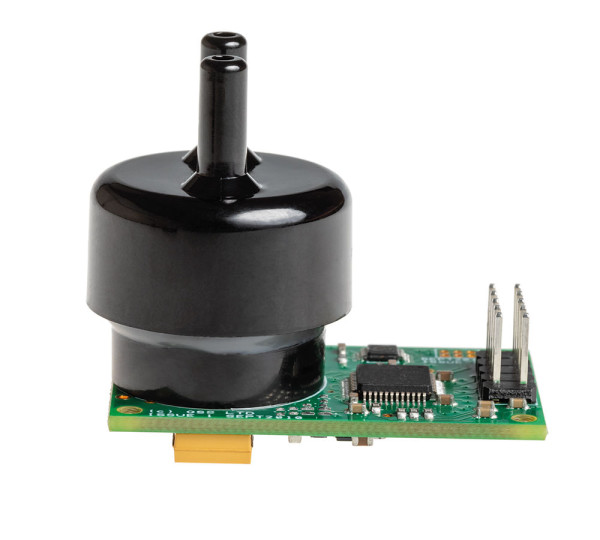

The SprintIR®-W is fitted with a standard flow-through adaptor so the CO2 gas can be passed over the optical sensor at high speed. Other customised adaptors are also possible depending on the installation requirements. The SprintIR®-W uses patented NDIR solid-state LED optical technology enabling the sensor to respond to rapidly changing CO2 without compromising parametric performance.

mehr

Zurück

Spezifikation

Co2 Sensor Specifications
Measurement Ranges	0-5%, 0-20%, 0-60%, 0-100%
Accuracy (typ.)	0-60% ±(70ppm +5% of reading) 0-100%±(300ppm +5% of reading)
Time to 1st Reading	<0.5 seconds
Response Time	Flow dependent
Readings per Second	20
Sample Method	Solid-state LED NDIR Difusion

Electrical and Mechanical Specifications
Measurement Output	UART
Supply Voltage	3.25V - 5.5V
Power Consumption (typ.)	100mW @ 3.3V
Dimensions and Weight	42.45mm x 25mm x 37 mm

Operating Conditions
Operating Conditions – Temperature	0°C to 50°C
Operating Conditions – Humidity	0-95% RH, non-condensing
Storage Conditions – Temperature	-40°C to +70°C
Pressure Dependence	500mbar - 10bar (without flow adaptor)
Sensor Lifetime	>15 years
Environmental Compliance	RoHS and REACH
